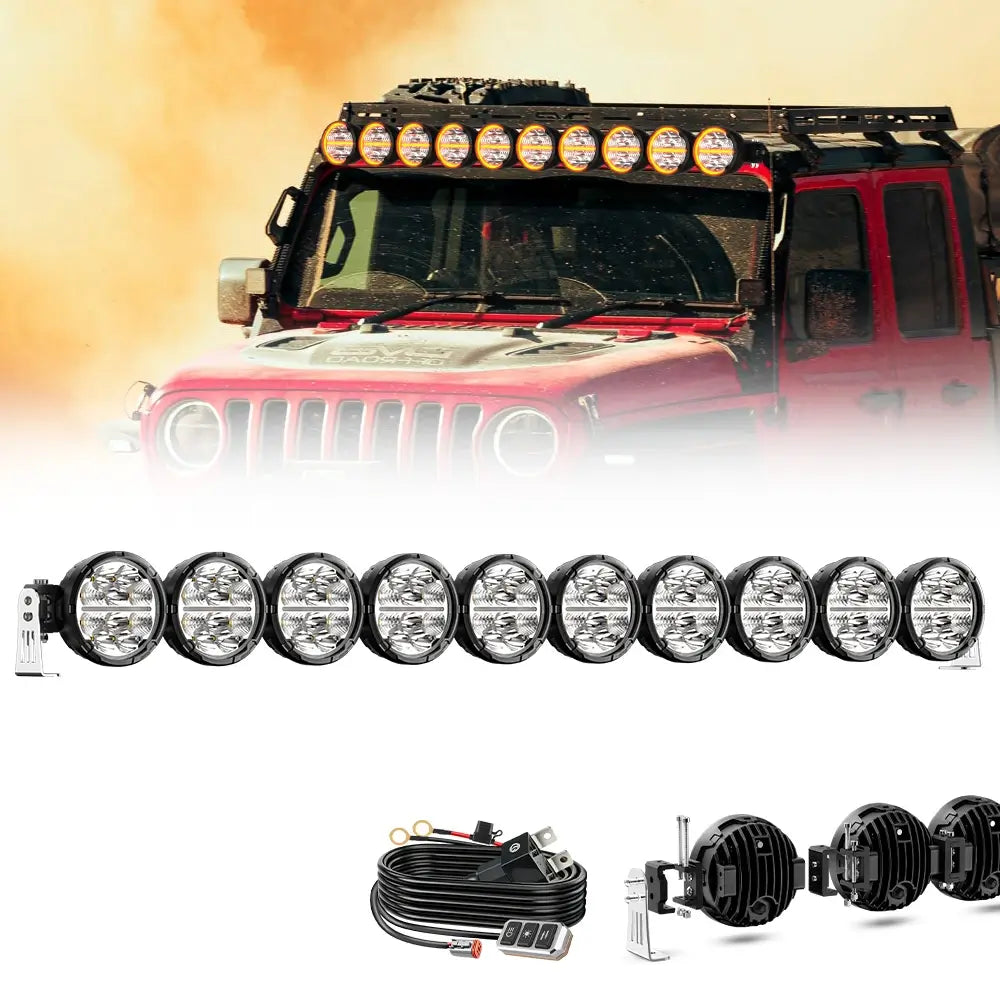

Pre-order now and be among the first to upgrade your rig. Looking for something different from a conventional LED light bar? The COLIGHT SR5 Pro combines multiple 5-inch round driving lights into one distinctive light bar, featuring a signature halo-and-crossbar DRL design, long-range-focused Driving Combo optics, and seven dynamic DRL modes.

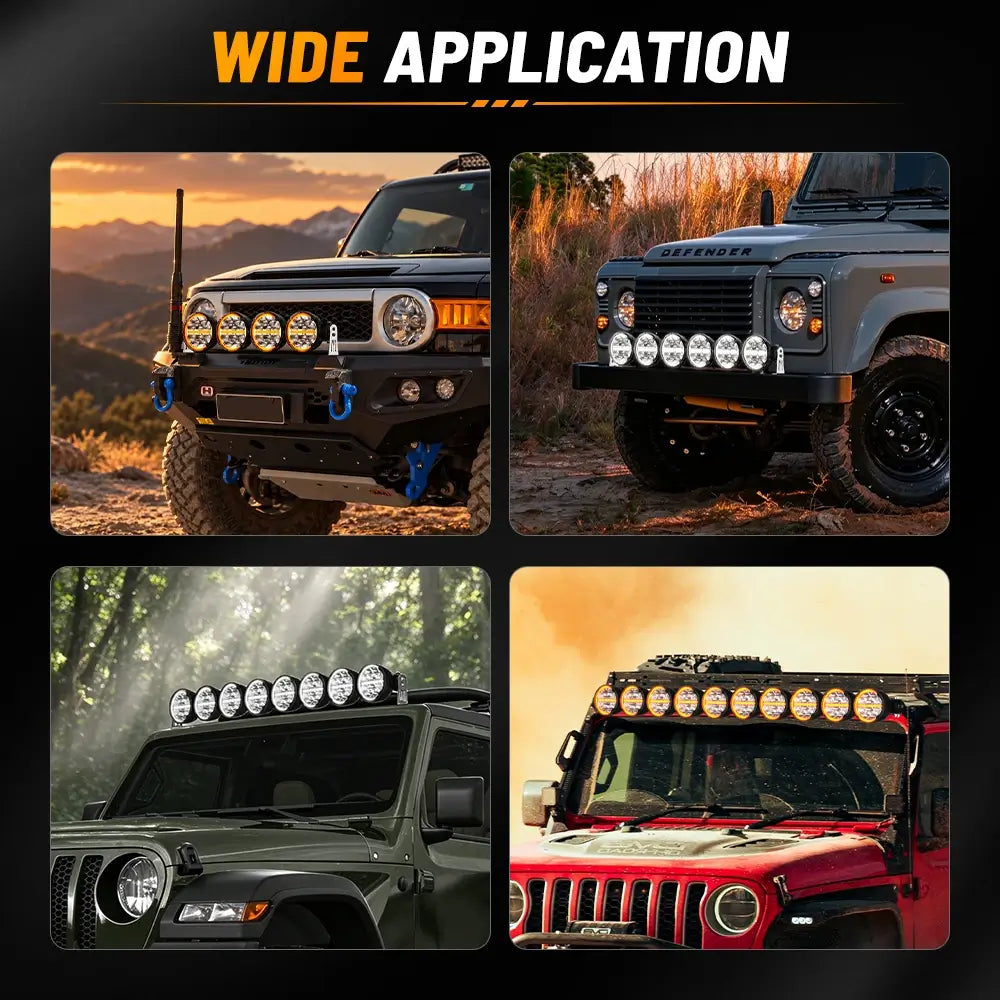

Available in four sizes from 22 to 52 inches, the SR5 Pro gives your vehicle a bold off-road look while delivering auxiliary lighting for nighttime trails and other off-road adventures. With independent main-light and DRL controls, four size-specific wiring harnesses, and two DRL color options, you can tailor your setup to your vehicle and style.
Key Features
- Distinctive 5-Inch Round Design: Multiple individual round lights create a bold, segmented look that stands apart from traditional continuous LED light bars.
- Long-Range-Focused Driving Combo Beam: Combines four flood reflectors and six spot reflectors per light to balance distance and surrounding coverage, with an emphasis on long-range illumination.
- High-Output LED Performance: Each light uses 10 high-power LED chips, with a listed output of 5,760 lumens per light.

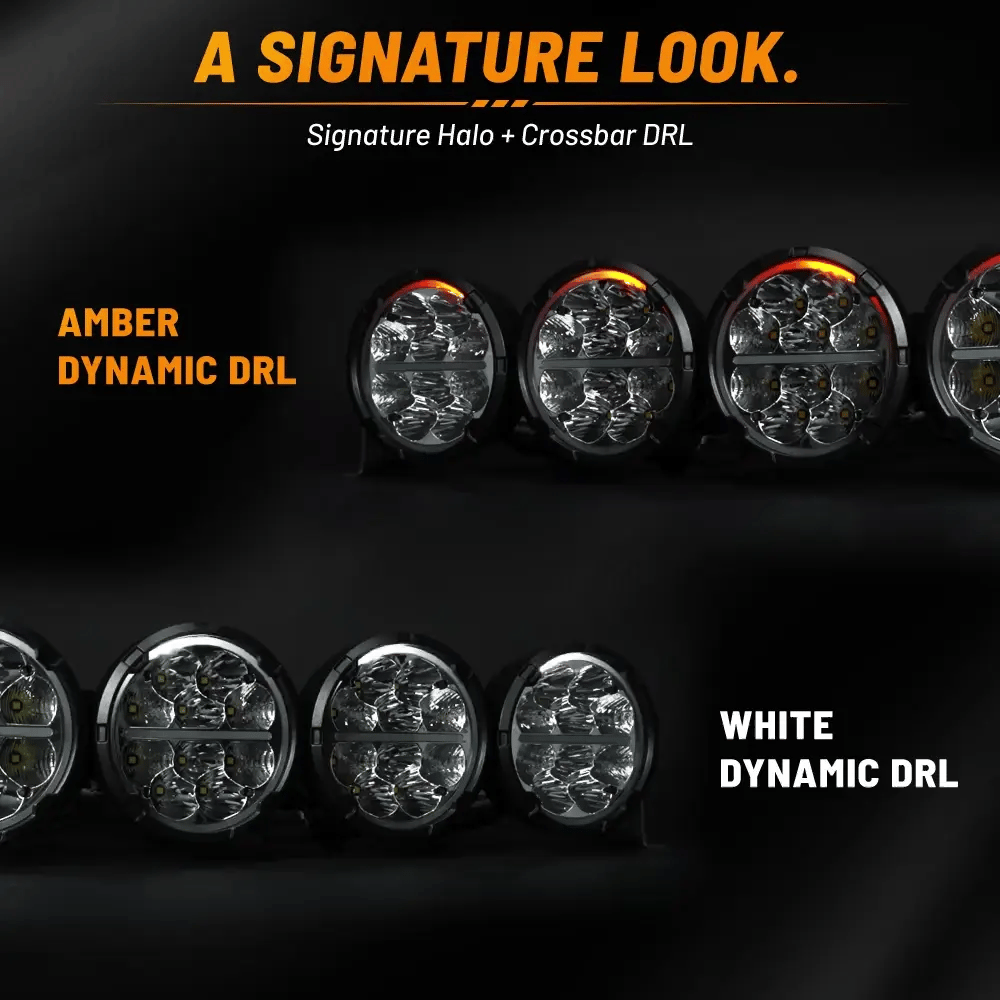

- Signature Halo + Crossbar DRL: Each round light features a distinctive outer halo and center crossbar, creating a recognizable lighting signature across the entire bar.
- White or Amber DRL: Choose between white and amber daytime running light colors. Both options feature a DRL memory function.
- Six Dynamic DRL Modes: Cycle through seven dynamic lighting patterns using the dedicated DRL mode button.
- Welcome Lighting Sequence: Activate the DRL to enjoy a white welcome lighting sequence.

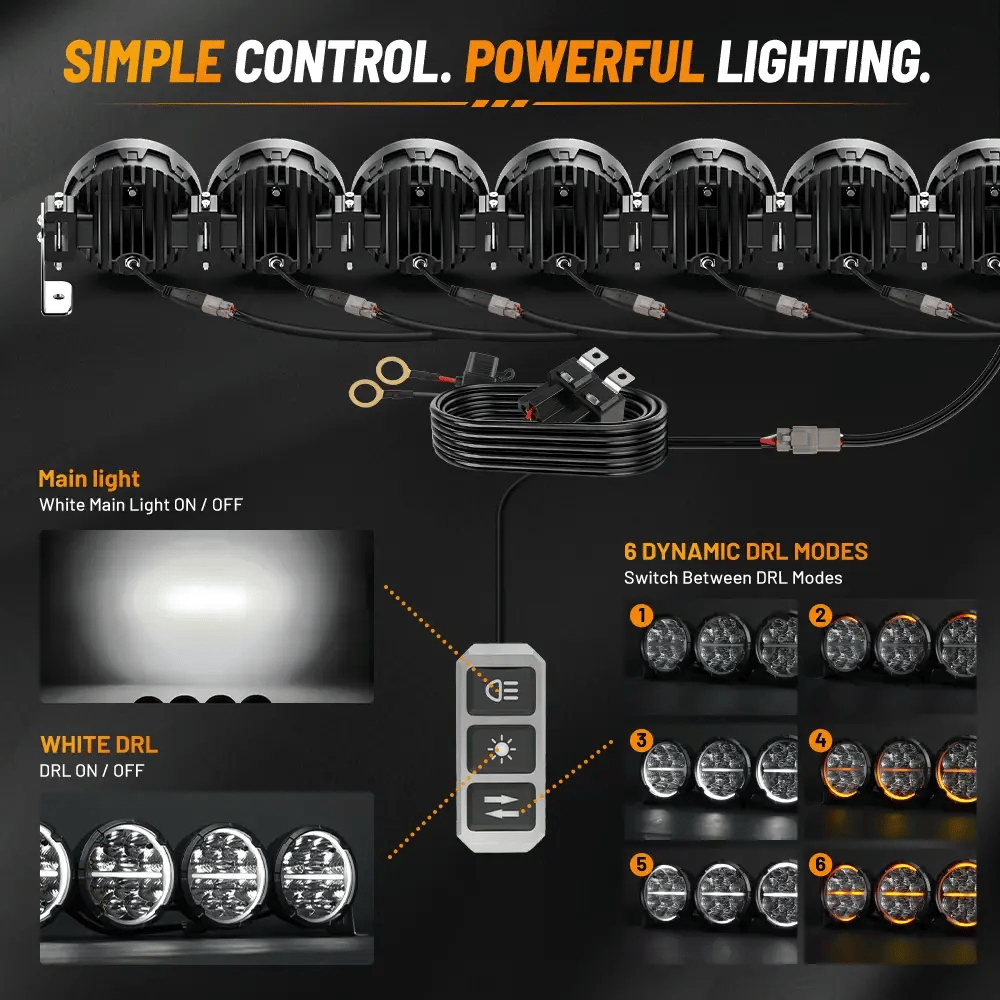

- Independent Lighting Controls: Operate the main lights and DRL independently, with a dedicated button for switching DRL modes.

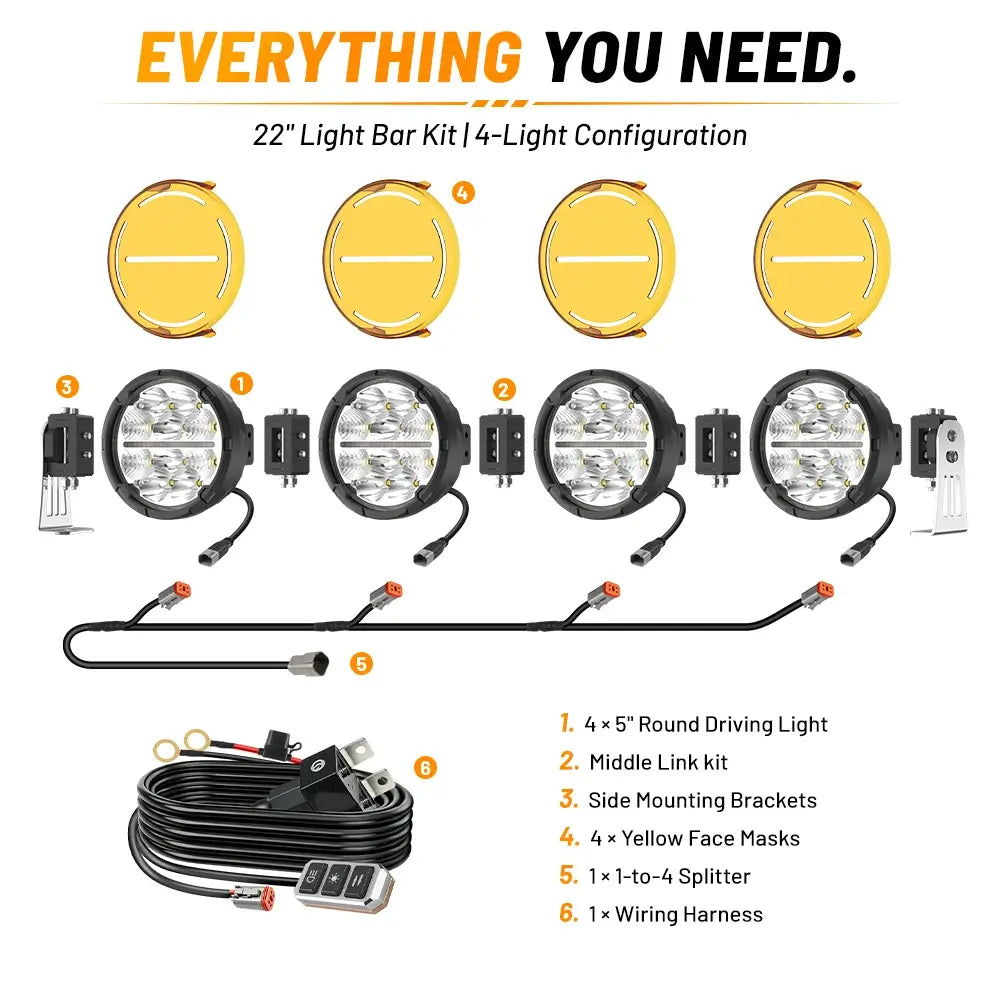

- Complete Wiring Harness Included: Each size comes with its own matched wiring harness, relay, fuse, three-button switch, and wiring instructions.
- Breather Valve Design: A built-in rear breather valve helps balance internal and external pressure as temperatures change.
- Yellow Perforated Covers Included: The included covers add a distinctive finishing touch while leaving the DRL pattern visible.
Long-Range Lighting for Off-Road Adventures

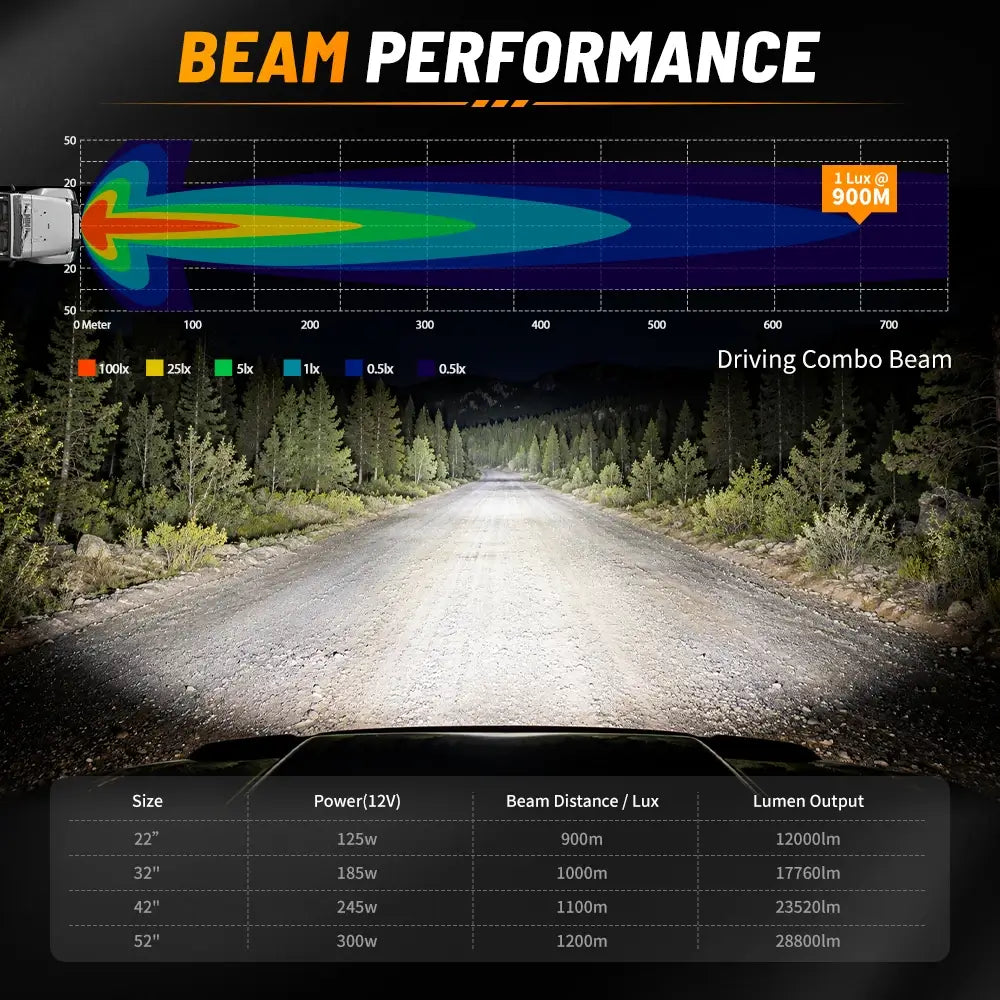

The SR5 Pro uses a Driving Combo optical arrangement with four flood reflectors and six spot reflectors in each 5-inch light. This combination is designed to provide both distance-oriented illumination and broader coverage, with an emphasis on seeing farther ahead.
Whether you're driving off-road trails or exploring remote routes after dark, the SR5 Pro adds auxiliary lighting beyond your factory headlights.
Each light uses 10 high-power LED chips and has a listed output of 5,760 lumens. Actual beam distance, illuminance, and coverage depend on the final optical performance and testing conditions.
Note: This product is intended as auxiliary lighting. Check local regulations before using it on public roads.

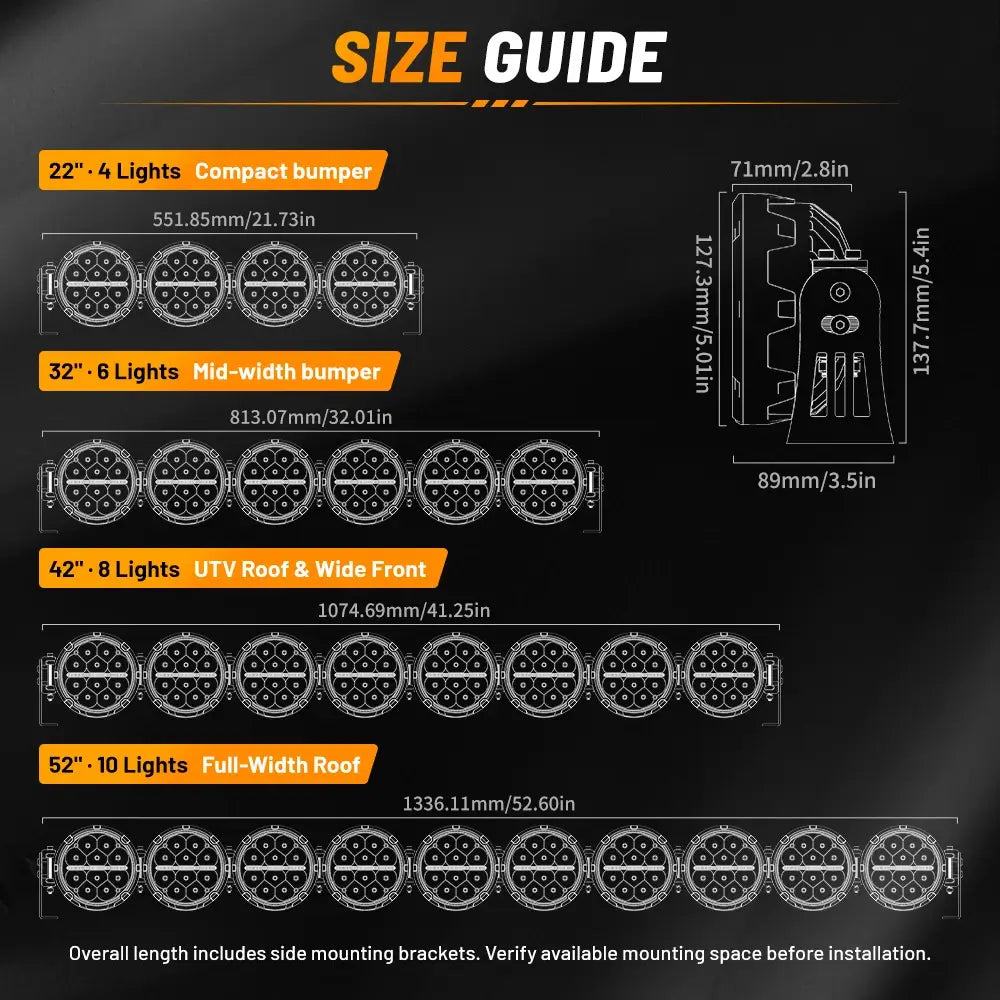

Choose the Right Size for Your Vehicle

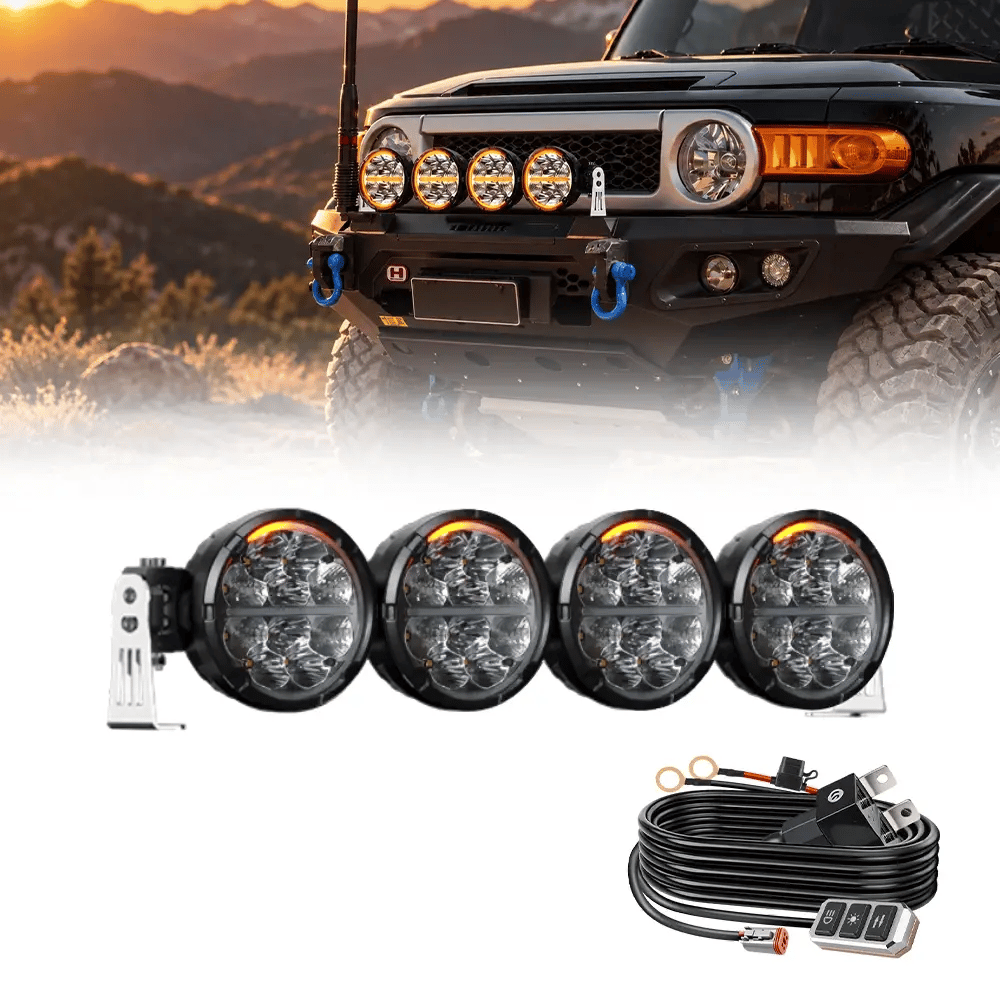

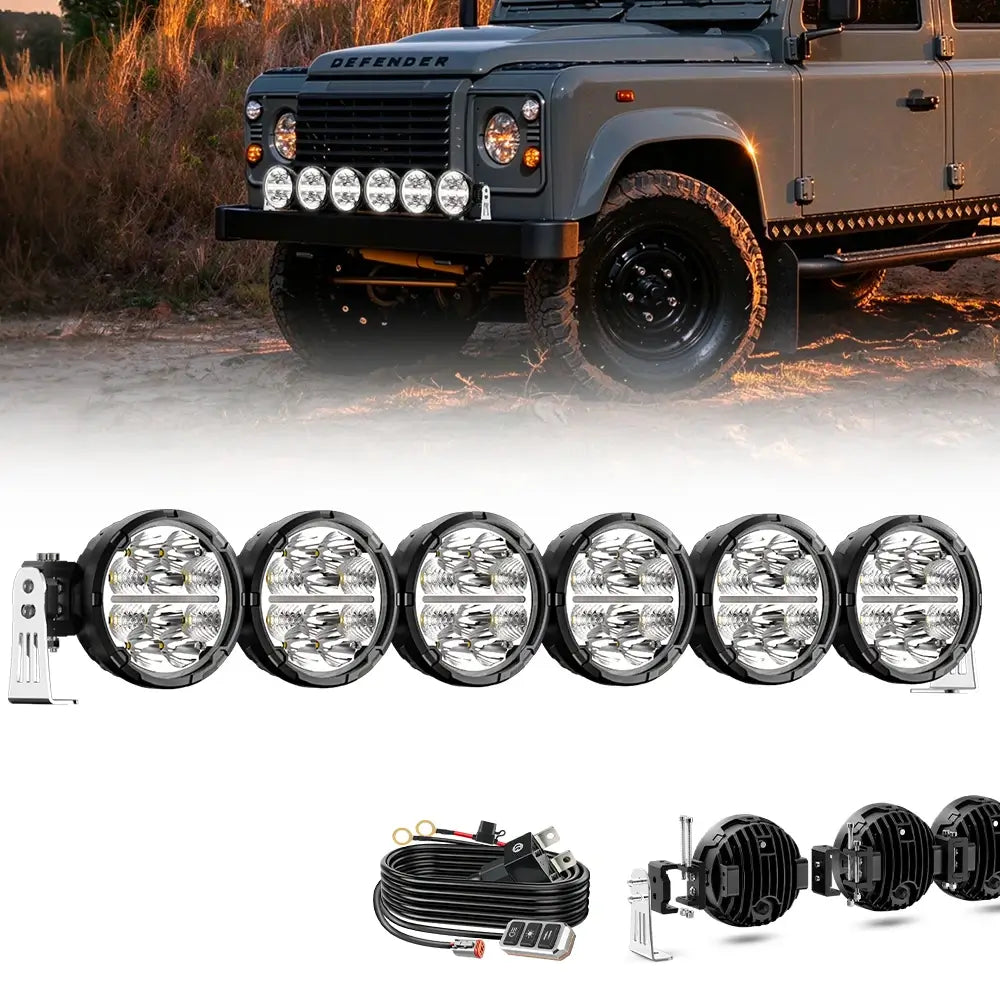

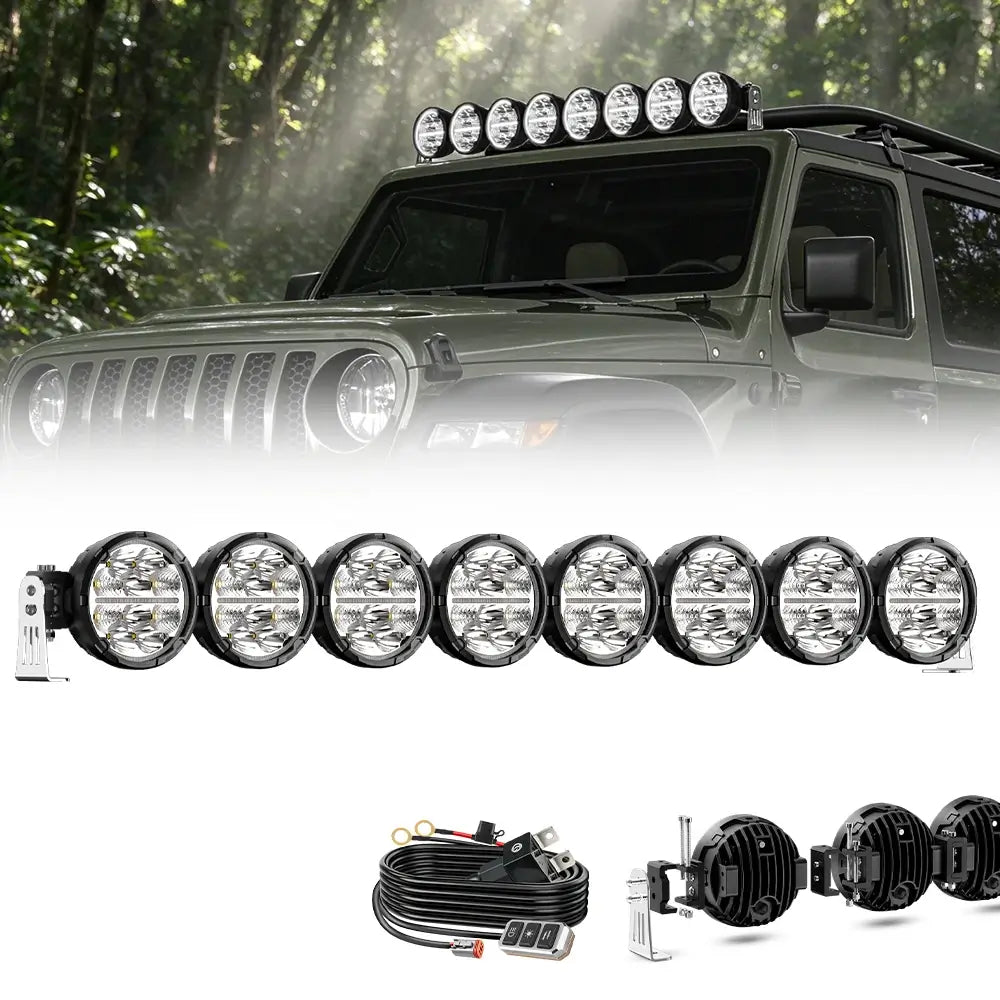

The SR5 Pro is available in four configurations, with four, six, eight, or ten individual 5-inch lights. Select the length that best fits your available mounting space and desired appearance.
| Specification | 22-Inch | 32-Inch | 42-Inch | 52-Inch |
|---|---|---|---|---|
| Number of lights | 4 | 6 | 8 | 10 |
| Total listed output | 23,040 lm | 34,560 lm | 46,080 lm | 57,600 lm |
| Overall length, including brackets | 551.85 mm | 813.07 mm | 1,074.69 mm | 1,336.11 mm |
| Light body height | 127.3 mm | 127.3 mm | 127.3 mm | 127.3 mm |
| Overall height, including side brackets | 137.7 mm | 137.7 mm | 137.7 mm | 137.7 mm |
| Light body depth | 71 mm | 71 mm | 71 mm | 71 mm |
| Wiring harness | 14AWG | 12AWG | 10AWG | 10AWG |
Important: The dimensions above include the side brackets where specified. Measure your available mounting space before ordering, and allow additional clearance for mounting hardware, wiring, and vehicle components.
Each individual light connects through a 4-pin DT connector. The wiring harness measures approximately 3 meters from the light-side DT connector to the power connection, giving you flexibility when routing the wiring.
The included harness is configured for the selected light count, so choose the correct size when ordering. Verify the required power supply, fuse rating, and installation instructions before connecting the system.
Built for Off-Road Use

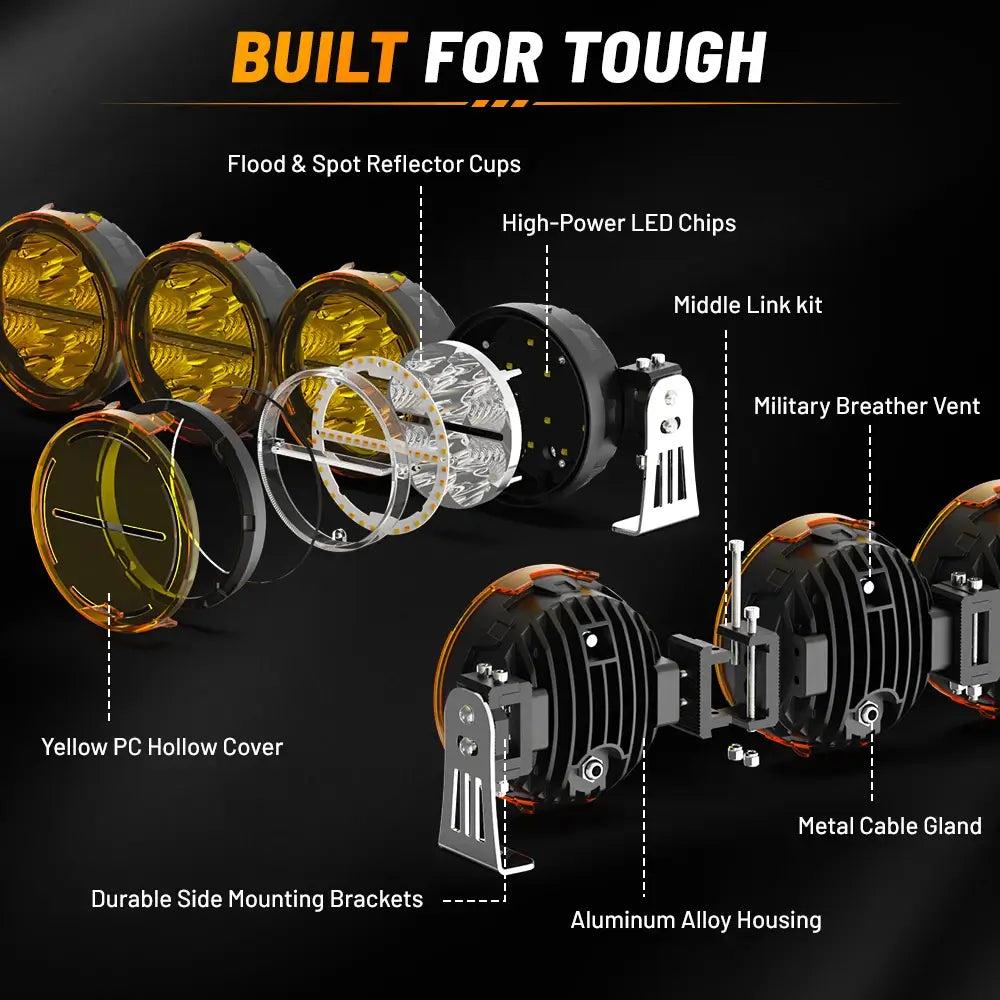

The rear breather valve helps manage pressure changes inside the light housing as temperatures fluctuate. The robust multi-light construction is designed for off-road auxiliary lighting applications.
For long-term reliability, follow the installation instructions, secure all connectors properly, and confirm that the final mounting position protects the lights and wiring from avoidable impact or abrasion.
