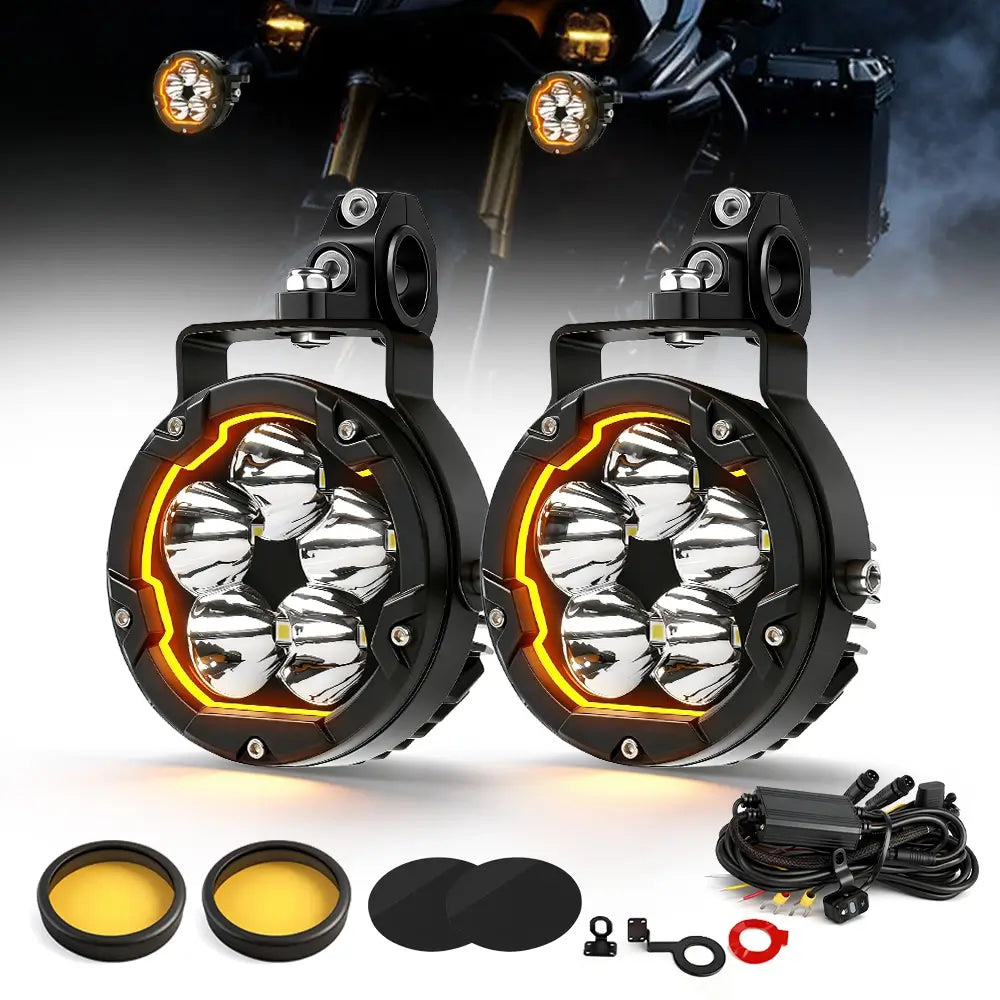

3.5inch Atlas Series Multi-Mode LED Motorcycle Auxiliary Lights(Set/2pcs)

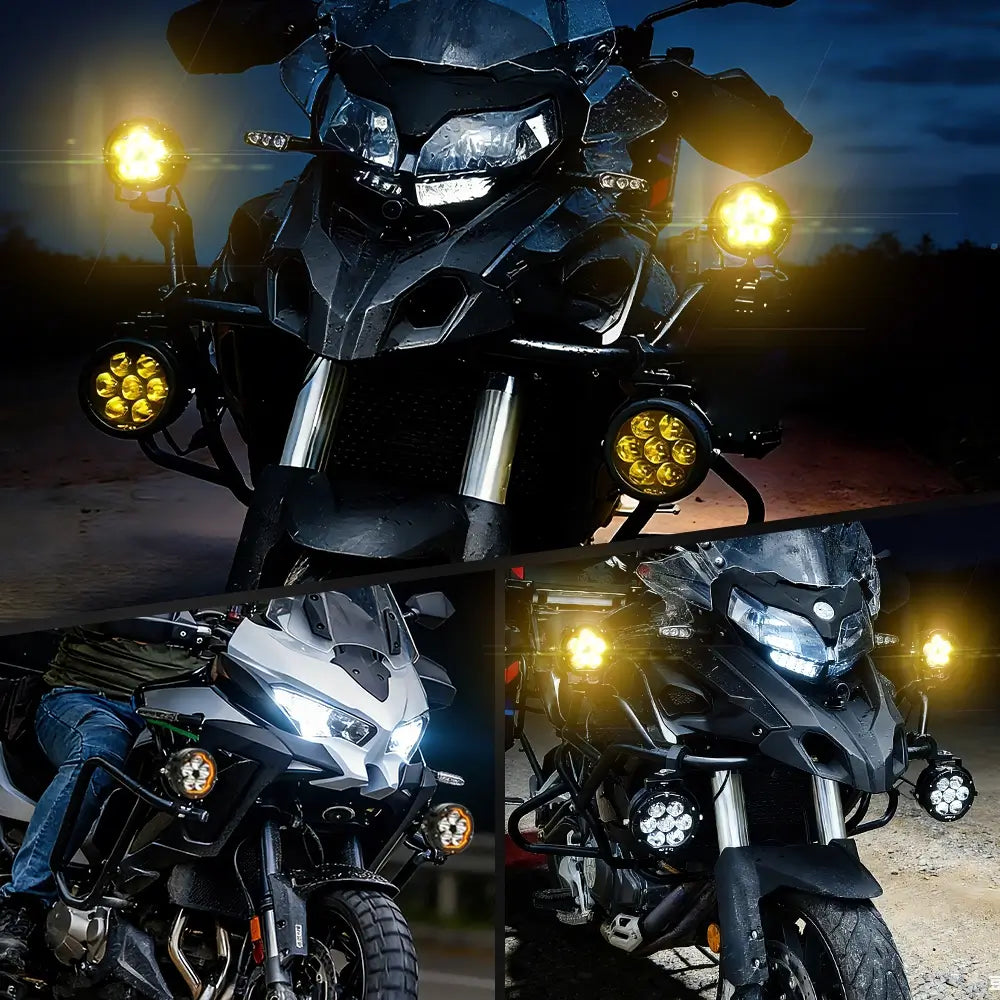

Designed for premium ADV and touring motorcycles, the ATLAS 3.5” delivers high-output performance in a compact, aggressive form factor—perfectly suited for models such as ADV, Touring, Harley, Pan America, BMW GS, CF Moto 450MT, and similar mid-to-large displacement bikes.

---

Signature Optical Design

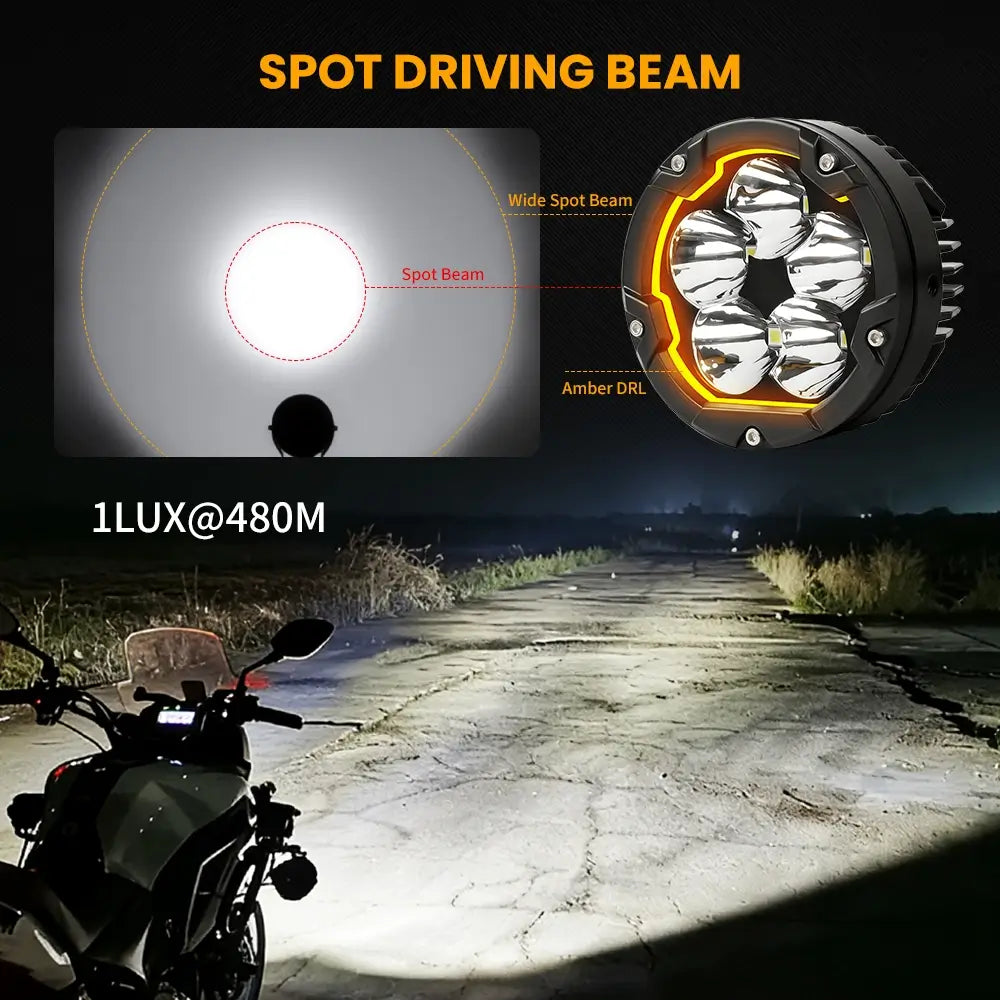

The front profile features five high-efficiency reflector cups arranged in a petal layout, centered around a projector-style primary LED. This hybrid optical structure delivers:

• Focused long-range penetration
• Wide peripheral coverage

• Aggressive, high-end visual presence

Output: 87W per pair
Brightness: Up to 9500 lumens per pair

---

Engineered for Real-World Riding

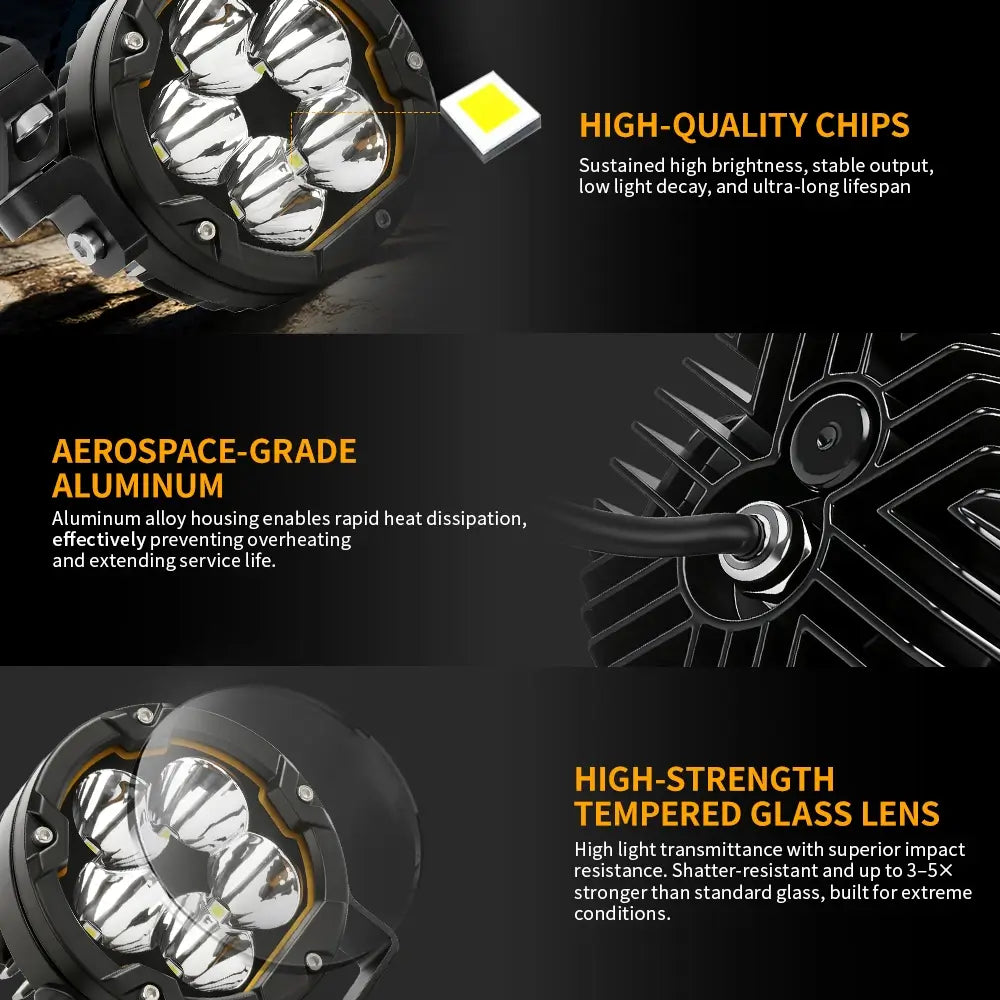

• Dense rear heat-sink structure for sustained thermal stability
• Heavy-duty U-shaped bracket for upright or suspended mounting

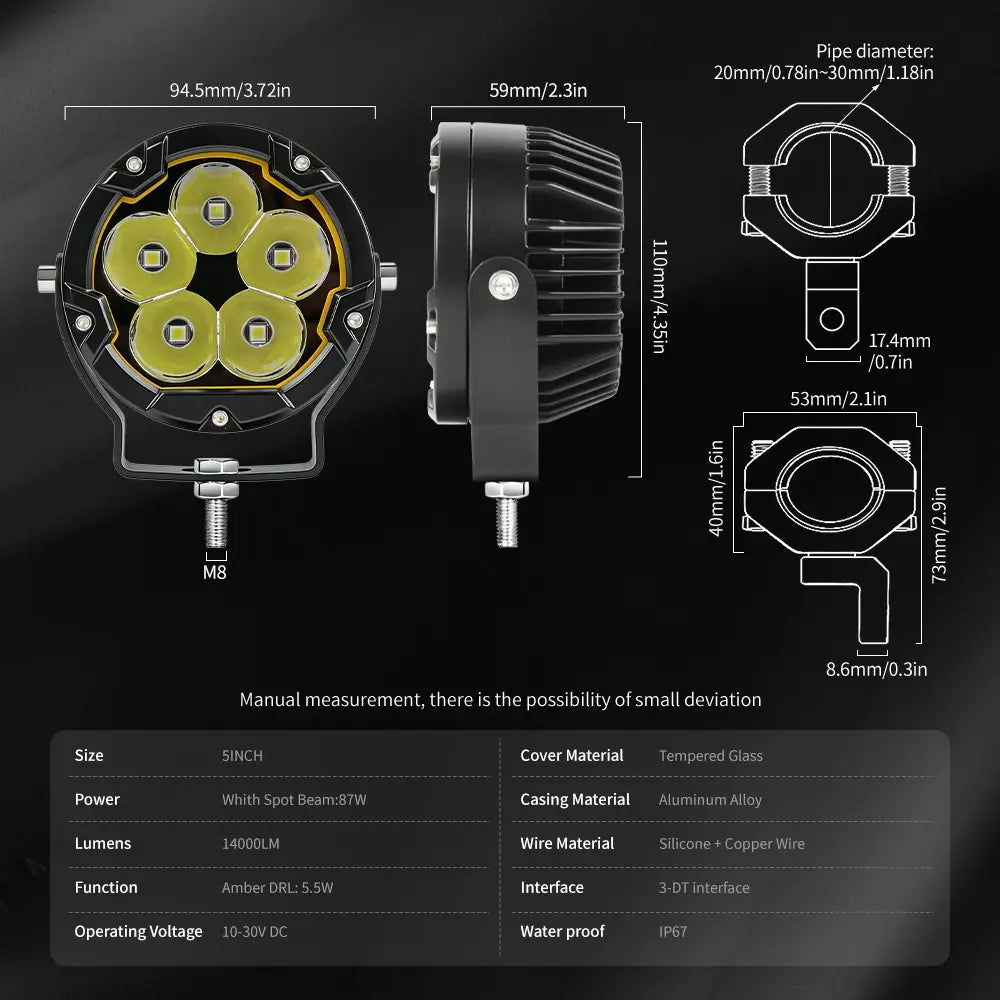

• Included pipe clamp mounts (fits 0.78–1.18 inch / 20–30mm bars)

• Compatible with crash bars and auxiliary mounting points

---

Multi-Mode Intelligent Control System

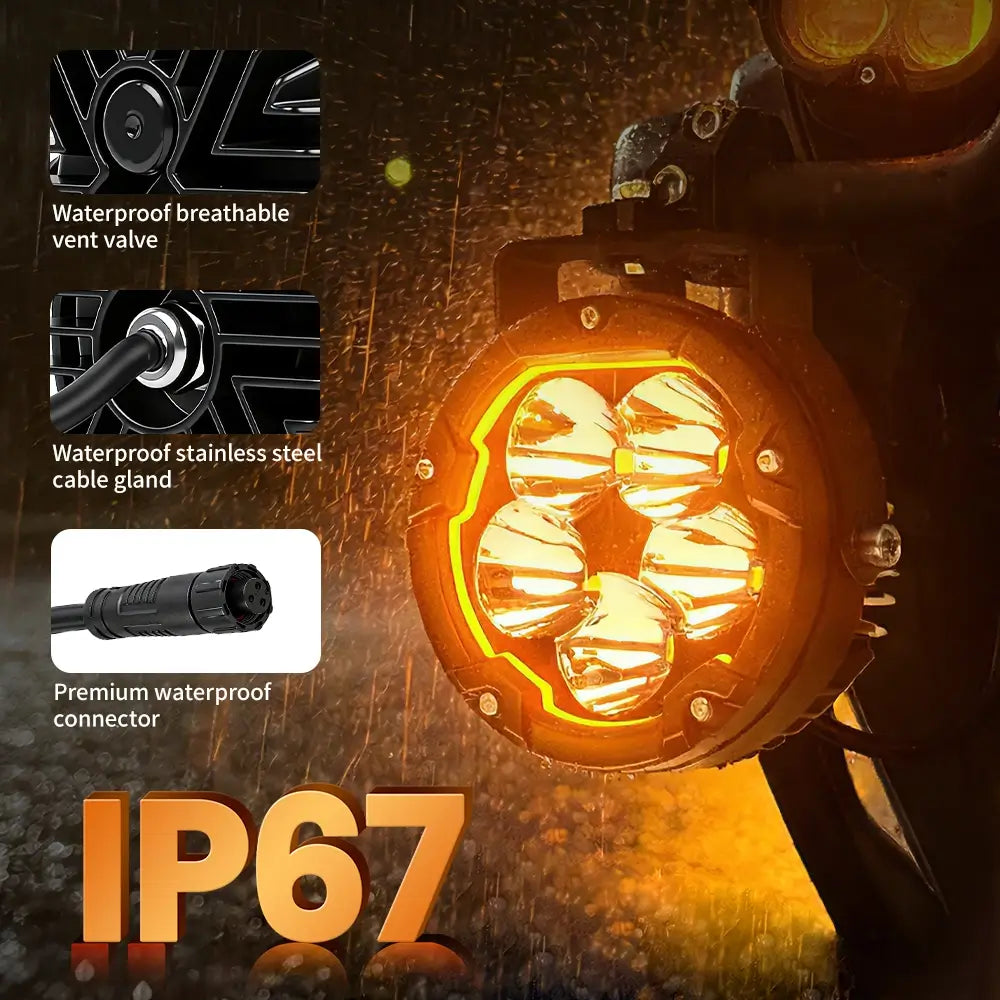

Supplied with a dedicated waterproof harness for advanced functionality:

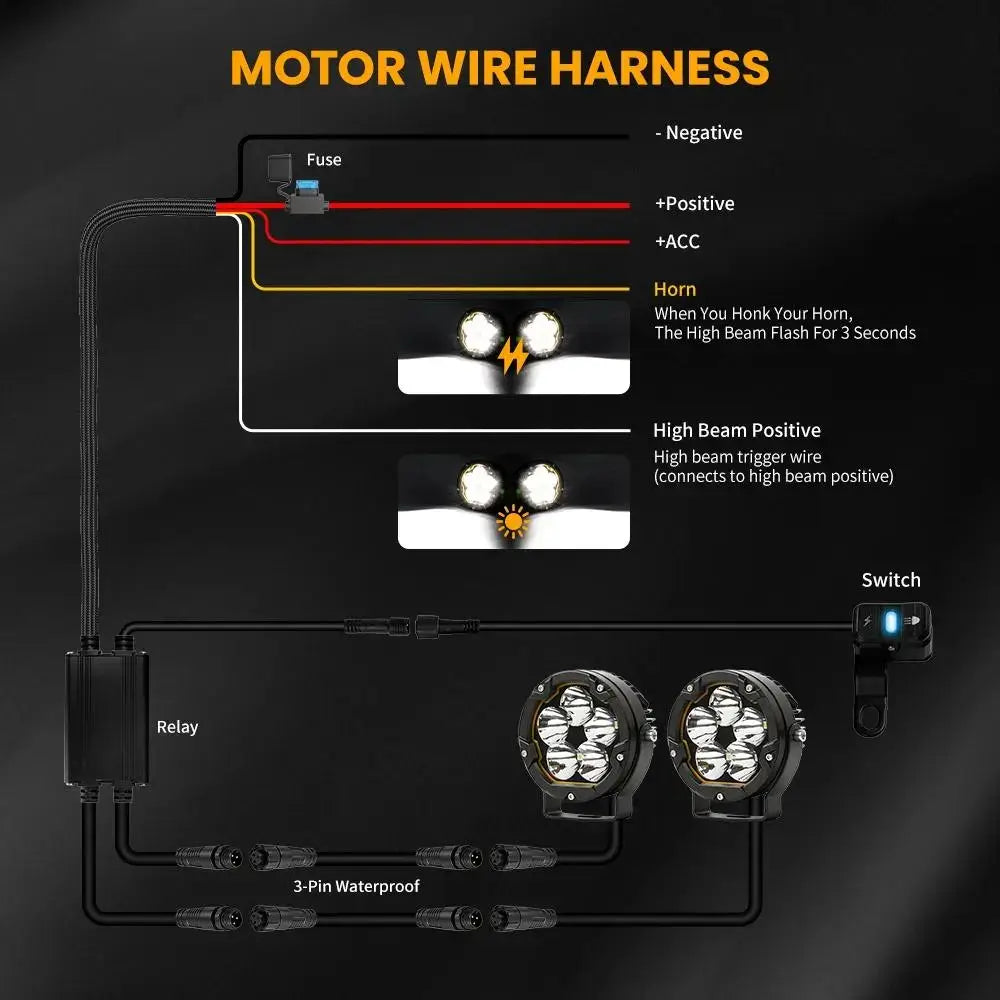

Wiring Overview

• Black: Ground/Negative
• Red: Main positive
• Red (ACC) wire: Ignition-triggered power (prevents battery drain)
• Yellow wire: Horn trigger (3-second strobe when horn is pressed)
• White wire: Connect to passing beam for flash alert or connect to high beam for synchronized operation

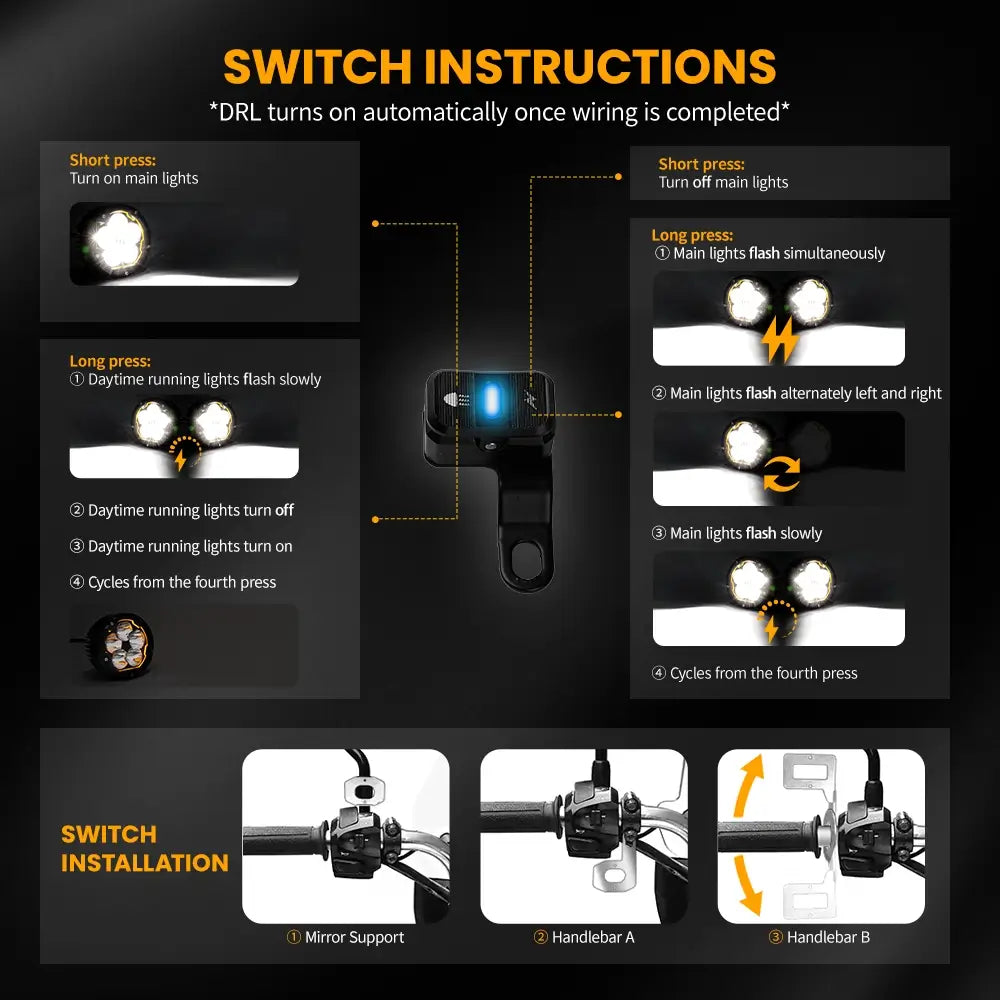

Functional Control

• Short Press – Main Beam Switch→ Main beam ON
• Short Press – Strobe Switch→ Main beam OFF
• Long Press – Strobe Switch (Cycle Modes)
  → Simultaneous strobe
  → Alternating strobe
  → Slow flash
  → Repeat
• Long Press – Main Beam Switch (Cycle DRL Modes)
  → DRL Slow Flash
  → DRL OFF
  → DRL ON
  → Repeat

The light powers on with amber DRL by default. The DRL remains on by default after each restart.

---

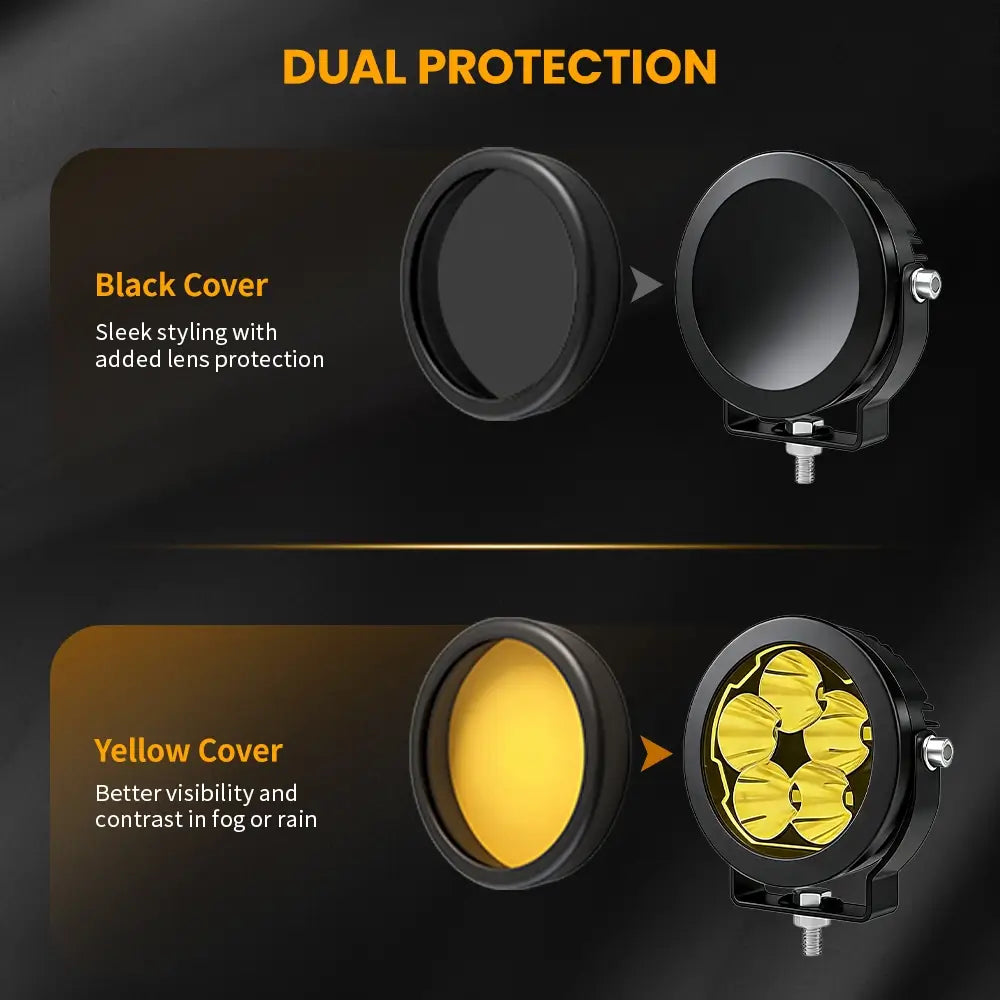

Convertible Lens Protection

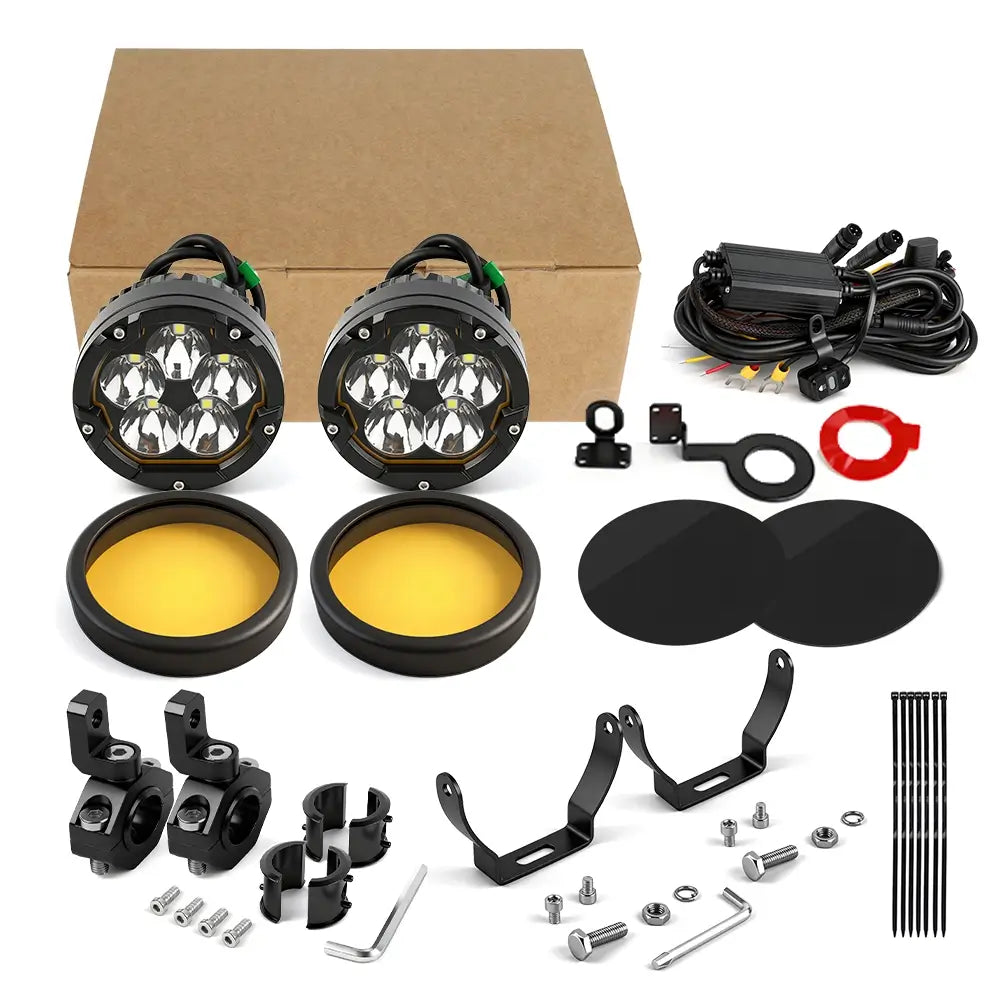

Included protective PC covers:

• Black cover – added protection and stealth styling
• Yellow cover – converts white beam into yellow output for fog, rain, and dust conditions

---

Important Note (Japanese Motorcycles)

Some Japanese motorcycles use reversed polarity in auxiliary lighting circuits.
In such cases, an additional polarity-conversion adapter may be required (not included).

Q: Can the 3.5" Atlas Series be connected via HEX EZCAN?
A: Not recommended. We advise using the included wiring harness for installation, which enables more lighting functions and full performance.
